    Phase Change Electrode Hot Water Boiler

    The Tuff Electrode Phase Change Hot Water Boiler utilizes the conductive and resistive properties of water to carry electrical current and generate heat. Alternating current is introduced into the boiler drum from the outside through an insulation device, using water as a conductor to complete the energy conversion process. During operation, there is no heat accumulation or transmission loss, achieving nearly 100% conversion of electrical energy into thermal energy. By controlling conductivity and water level, the boiler’s operating power is regulated. Heat energy is transferred to the heating system via the phase change heat exchanger at the top of the boiler. The system does not require external components such as expansion tanks, circulation pumps, or first-side heat exchangers. The boiler’s internal dual-zone devices and the phase change heat exchanger at the top complete a closed loop of heating, evaporation, condensation, heat release, and reheating. This results in high heating efficiency, zero pollution, and reliable safety.

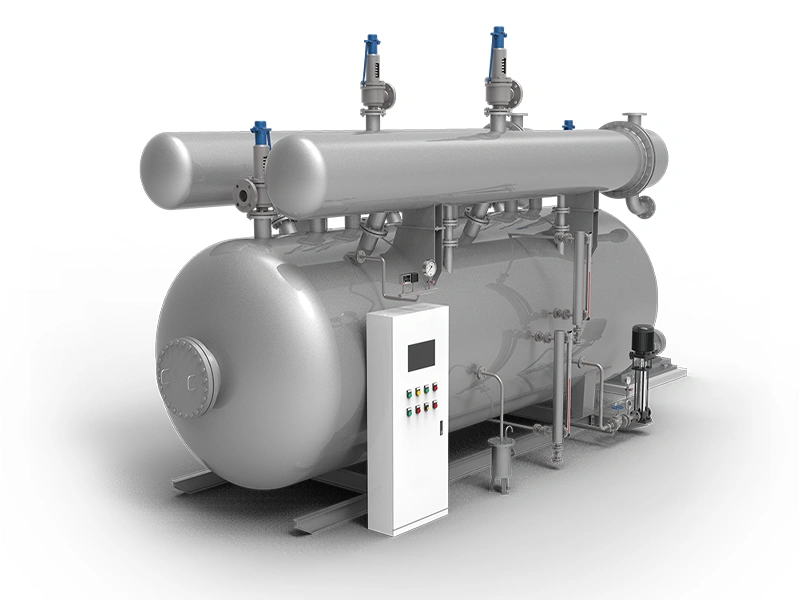

    Phase Change Electrode Hot Water Boiler
    Suitable

    Suitable for: Outlet water temperature ≤ 130°C

    Use phase change heat exchange modules

    Employs high-pressure center isolation technology

    Closed-loop circulation system

    Quick and precise load adjustment

    Applications

    Pharmaceuticals

    Food Processing

    Clean Energy

    Chemical Industry

    Textile Industry

    Hospitals and Healthcare

    Research Laboratories

    Electronics Manufacturing

    Beverage Industry

    Paper and Pulp Industry

    Technical parameters
    Model Power
    (MW)
    Voltage
    (kV)
    Rated Output Pressure
    (MPa)
    Inlet/Outlet Water Temperature (°C) Drum Diameter
    (mm)
    Dimensions
    (mm)
    Weight
    (kg)
    Water Capacity
    (m³)
    WDJ7-0.7/95/70 7 6.3, 10 0.7~1.6 95/70, 130/110 2200 5600 x 2500 x 3740 10,000 18
    WDJ10.5-0.7/95/70 10.5 6.3, 10 0.7~1.6 95/70, 130/110 2500 7000 x 3100 x 4000 15,000 26
    WDJ14-0.7/95/70 14 6.3, 10 0.7~1.6 95/70, 130/110 2500 7000 x 3100 x 4230 20,000 26
    WDJ17.5-0.7/95/70 17.5 6.3, 10 0.7~1.6 95/70, 130/110 2500 7000 x 3100 x 4230 20,000 26
    WDJ21-0.7/95/70 21 6.3, 10 0.7~1.6 95/70, 130/110 3000 8000 x 3200 x 4500 21,000 45
    WDJ28-0.7/95/70 28 10, 15 0.7~1.6 95/70, 130/110 3000 8000 x 3200 x 4800 24,000 45
    WDJ35-0.7/95/70 35 10, 15 0.7~1.6 95/70, 130/110 3200 8000 x 3400 x 5000 30,000 60
    WDJ42-0.7/95/70 42 10, 15 0.7~1.6 95/70, 130/110 3200 8000 x 3400 x 5000 35,000 60
    WDJ49-0.7/95/70 49 10, 15 0.7~1.6 95/70, 130/110 3700 10,000 x 4000 x 5400 50,000 80
    WDJ56-0.7/95/70 56 10, 15 0.7~1.6 95/70, 130/110 3700 10,000 x 4000 x 5500 55,000 80
    WDJ63-0.7/95/70 63 10, 15 0.7~1.6 95/70, 130/110 3800 11,000 x 4200 x 5600 60,000 80
    WDJ70-0.7/95/70 70 10, 15 0.7~1.6 95/70, 130/110 4000 12,000 x 4400 x 5800 65,000 100



    This table includes the model, power, voltage, rated pressure, water temperature, drum diameter, dimensions, weight, and water capacity for each boiler model. You can also customize the electric boiler based on your needs! Contact us now and tell us what your requirements are for it.
